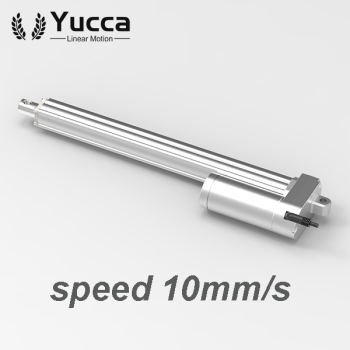

Small dimension electric linear actuator with metal gear load 2700N
- group name
- Light linear actuator YA180
- Min Order
- 1 piece
- model
- YA180
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, PayPal
- update time
- Fri, 03 Jan 2020 11:35:26 GMT
Paramtents
Brand Yucca
Motor Worm gear
Color Silver gray or black
Certification CE, ROHS, ISO9001-2008
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Standard stroke 10mm-800mm
Duty cycle 10%
Commutation Brush/Brushless
Motor power 50W
Ambient temperature -25°C~+65°C
Packging & Delivery
- 41cm x 30cm x 18cm
-
Min Order1 piece
Briefing
Quite linear actuator YA180
stroke: option
load: 2700N
speed: 10mm/s
voltage: 24V
stroke: option
load: 2700N
speed: 10mm/s
voltage: 24V
Detailed
Small eimension electric linear actuator with metal gear load 2700N
General Features |
|||
Voltage |
12V DC, 24V DC |
||
Stroke |
stroke+105mm(stroke＜300mm); stroke+120mm(stroke≥300mm) |
||
Load |
2700N |
||
Speed | 10mm/s(no load); 6.8mm/s(full load) | ||
IP | 65 | ||
Stroke | 10-800mm | ||
Noise | 50db | ||
Matierial | Metallic zinc alloy | ||
Limit switches | Built in | ||
Gear | Metal gear | ||
