YA-L92
- group name
- YA-L92 Lifting Column
- Min Order
- 1 piece
- Nearest port for product export
- Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, PayPal
- update time
- Fri, 28 May 2021 15:26:34 GMT
Paramtents
颜色 银灰色
Packging & Delivery
-
Min Order1 piece
Briefing
Yar Yi's YA-L series lifting columns are specifically designed for ergonomic desks and workstations.
Detailed

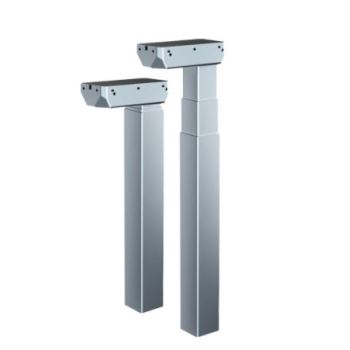

Yar Yi Lifting Column YA-L92
Yar Yi's YA-L series lifting columns are specifically designed for ergonomic desks and workstations. Using multiple YA-L series lifting columns compatible with Yar Yi control boxes and YA-S series control handles, it is possible to synchronize movements and to smoothly and smoothly control the work surface. All YA-K series control boxes have a backup battery option of less than 0.1W. Our extensive columns provide customers with the solutions they need to meet their work environment project requirements. YA-L92 has a two-stage telescopic outer tube.
General Features:
1. Maximum load: 800N in push
2. Maximum speed at full load: 38mm/s (with 800N in a push condition)
3. Minimum installation dimension: 560mm
4. Stroke: 650mm
5. Highest height: 1210mm
6. Dimension of outer tube (L*W): 70*70mm
7. Two stage outer tube with rectangular appearance
8. Color: Silver gray
9. Operational temperature range: -25°C~+45°C
10. Higher duty cycle (25%),
11. With narrow top and wide bottom configuration
Standard Technical Sheet:
Drawing:
